| Place of Origin: | China |
|---|---|
| Brand Name: | BONTP |
| Certification: | IOS9001,IAF,CNAS,RoHS,SGS |
| Model Number: | 1000D 20*20 |
| Minimum Order Quantity: | 5000 Square Meters |
| Price: | Negotiable |
| Packaging Details: | ROLL PACKING |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000MTS/MONTH |
| Ingredient: | PVC, Polyester Mesh | Thickness Gram Weight: | Custom Made |
|---|---|---|---|
| Color: | Custom Made | Application: | Transport,industry |
| Character: | Flame Retardant (self-extinguishing From Fire), Good Color Fastness, Tear Resistance, Tensile Strength | Technical: | Coated |
| Weather: | -20℃-70℃ | Certification: | IOS9001,IAF,CNAS,RoHS,SGS |
| High Light: | 1000D trailer tarpaulin covers,1000D trailer cover tarp,20x20 trailer tarpaulin covers |
||

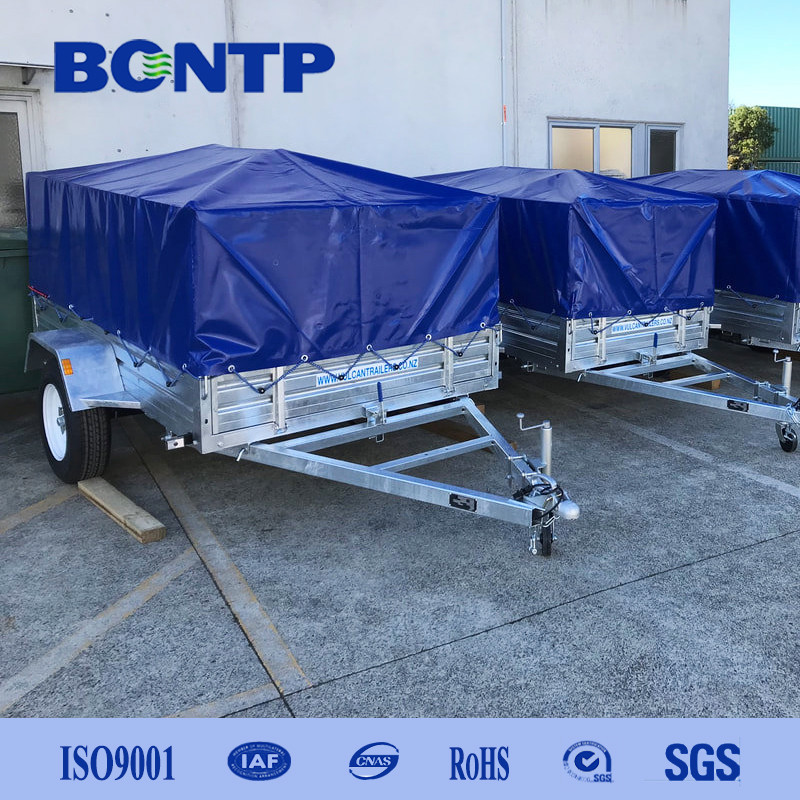

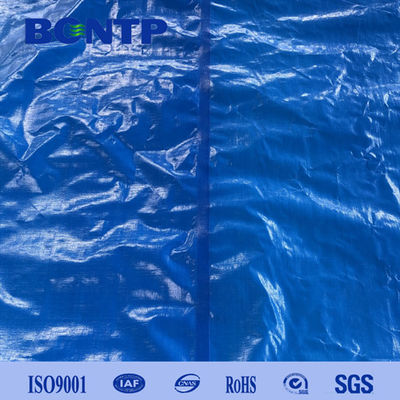

Trailer Cover Tarpaulin Waterproof Protective Poly Tarp For Cars,PVC Truck Cover
Description
PVC coated tarpaulin is the most commonly used material in flexible fabric structure. It consists of polyester loose cloth material, adhesive or adhesive and external PVC coating. The loose cloth supports the coating (initially applied in liquid form) and provides the tensile strength, elongation, tear strength and dimensional stability of the resulting fabric. The tensile strength of the backing is determined by the size (denier) and strength (toughness) of the yarn and the number of yarns per linear inch or meter. The larger the yarn, the more yarn per inch, the greater the tensile strength of the finished product. The adhesive acts as a chemical bond between the polyester fiber and the outer coating, and can also prevent the fiber from wicking or absorbing water during the process that may cause freeze-thaw damage to the fabric.
Detail Information
| Brand | BONTP |
| Product Name | PVC Truck Cover |
| Model Number | BTL102020 |
| Basic Fabric | 1000*1000D,20*20/sq.in |
| Weight | 260GSM |
| Packing | Craft Paper or Hard Tube Packing |
| Specification | 2.50m width, 50m/roll(standard),other length can customized |
| Application | Awning, Car, Garment, Mattress, Tent |
| Delivery Time | 20 working days after receiving the deposit |
Overview
| Supply Type: | Make-to-Order | Material: | PVC / Polyester |
| Weight: | 330gsm-1500gsm | Thickness: | Medium Weight |
| Feature: | Flame retardant | Technics: | woven |
| Style: | Plain | Type: | Tarpaulin |
| Width: | 0.9-5.1m | Density: | 20*20 |
| Pattern: | Coated | Use: | Truck tarpaulin, architectural membrane,motorboat |
| Yarn Count: | 1000D*1000D | Knitted Type: | Warp |
| Coated Type: | Pvc Coated | Model Number: | pvc tarpaulin |
| Color: | Customized | Usage: | Cover Outdoor Items |
| Application: | Tents Awning Roof Covering | Surface: | glossy or matte |
| Packing: | Roll Packing |
Parameters
| Attribute | Unit | Type/Test Method | |||||||
| Color | Custom made | ||||||||
| Basic Fabric | Denier | DIN EN ISO2060 |
500D | 840D | 500*840D | 1000D | 1300D | 2000 | 3000D |
| Weight | mm | DIN EN ISO2286-2 | Client's Requirement |
||||||
| Width | M | DIN EN ISO2286-1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 |
| Tensile Strength | N/5CM | DIN53354 | 600 | 1800 | 1600 | 1250-2500 | 1500-2200 | 2000-3000 | 4000-5000 |
| Tear Strength | DIN53363 | 80 | 200 | 180 | 260 | 450 | 550 | 700 | |
| Flame Retardancy | B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
||
| Color fastness | DINENISO 105-B02 |
7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | |
| Temperature Resistance | ℃ | DINEN 1876-2 |
(-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) |
Features
1) 100% high tenacity polyester yarns with PVC coating;
2) Laminated technology & Hot-melt Coating technology;
3) Good strength, good flexibility and adhesion strength;
4) Outstanding tearing strength for welding;
5) Cold Crack Resistance, Anti-Mildew, Anti-Static treatment, Waterproof;
6) Best color fastness.
Application
1. PVC coated polyester fabric used for Inflatable playground
2. PVC coated polyester fabric used for Inflatable toys.
3. PVC coated polyester fabric used for agriculture industry
4. All color can be customized.
Product Description
Packing&Delivery
inner railway wagon canopykraft paper outside or per your request=PVC tarpaulin railway wagon canopy
