Tear Resistant Waterproof PVC Tarpaulin PVC Coated Fabric For Truck Cover Tent Cover

Basic Information
Place of Origin: China
Brand Name: BONTP
Certification: IOS9001,IAF,CNAS,RoHS,SGS
Model Number: 1000D 20*22
Minimum Order Quantity: 5000 Square Meters
Price: Negotiable
Packaging Details: ROLL PACKING
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000MTS/MONTH
Detail Information
Ingredient: PVC, Polyester Mesh Surface Style: (Semi)Glossy,(Semi)Matte
Color: Custom Made Character: Flame Retardant (self-extinguishing From Fire), Good Color Fastness, Tear Resistance, Tensile Strength
Thickness Gram Weight: Custom Made Width: 1.5-5m
Usage: Waterproof/cover/tent Weight: 650gsm-850gsm
High Light:

BONTP Tear Resistant Waterproof PVC Tarpaulin

,

PVC Coated Fabric Truck Cover

,

Waterproof PVC Tarpaulin Tent Cover


Product Description

High Tear-Resistant Waterproof PVC Tarpaulin PVC Coated Fabric for Truck Cover Tent Cover,PVC Tent Fabric



Description



The tent fabric with high strength polyester tarpaulin is based on high strength polyester canvas fabric, coated with polyvinyl chloride (PVC) paste resin with growth agent, mildew agent, aging agent, antistatic agent and other chemical additives, through high temperature plasticizing. With waterproof, mildew proof, cold resistance, aging resistance, anti-static and other properties; And the product breaking strength, tear elongation, tear strength is much better than the traditional tarpaan; The appearance of the product is colorful and pleasing to the eye. The surface is specially treated to play the role of anti-skid, is the international popular waterproof cloth, and the width is very large, up to 2 meters wide, the processing of finished products can reduce the patchwork to improve the quality, can be heat sealing stitching, from sewing pinhole leakage worry. And according to the user needs to produce different functions, different colors, different thickness of the product.

Detail Information



Brand BONTP
Product Name 1000D PVC Tent Fabric
Model Number BTL102020
Basic Fabric 1000*1000D,20*22/sq.in
Weight 750GSM
Packing Craft Paper or Hard Tube Packing
Specification 2.50m width, 50m/roll(standard),other length can customized
Application Awning, Car, Garment, Mattress, Tent
Delivery Time 20 working days after receiving the deposit




Overview



Supply Type: Make-to-Order Material: PVC / Polyester
Weight: 330gsm-1500gsm Thickness: Medium Weight
Feature: Flame retardant Technics: woven
Style: Plain Type: Tarpaulin
Width: 0.9-5.1m Density: 20*22
Pattern: Coated Use: Truck tarpaulin, architectural membrane,motorboat
Yarn Count: 1000D*1000D Knitted Type: Warp
Coated Type: Pvc Coated Model Number: pvc tarpaulin
Color: Customized Usage: Cover Outdoor Items
Application: Tents Awning Roof Covering Surface: glossy or matte
Packing: Roll Packing



Parameters



Attribute Unit Type/Test Method
Color     Custom made
Basic Fabric Denier DIN EN
ISO2060
500D 840D 500*840D 1000D 1300D 2000 3000D
Weight mm DIN EN ISO2286-2
Client's Requirement
Width M DIN EN ISO2286-1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1
Tensile Strength N/5CM DIN53354 600 1800 1600 1250-2500 1500-2200 2000-3000 4000-5000
Tear Strength   DIN53363 80 200 180 260 450 550 700
Flame Retardancy     B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
Color fastness   DINENISO
105-B02
7-8 7-8 7-8 7-8 7-8 7-8 7-8
Temperature Resistance DINEN
1876-2
(-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃)



Features



1. Elongation skin and dimensional stability: as a roof and large canopy, it is often used under tension. The elongation of the fabric should not be too large, and its dimensional stability is determined by the creep property of the material.

2. tensile strength: tarpaan in use to bear all kinds of tension, such as fixed tension to be tension; The use process should be subject to the effect of wind, rain, province and other additional forces.

Product Description

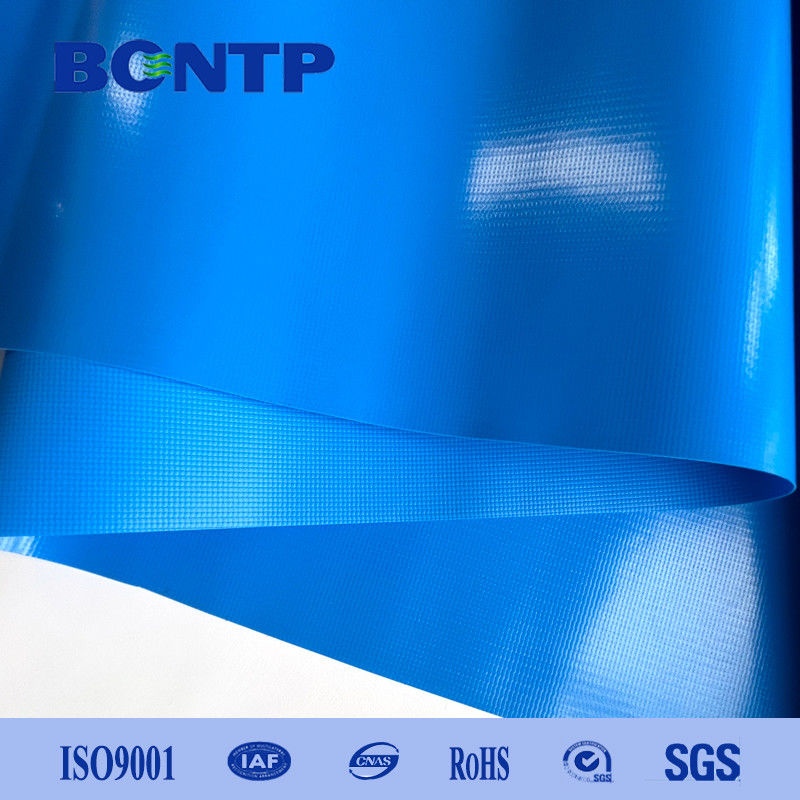

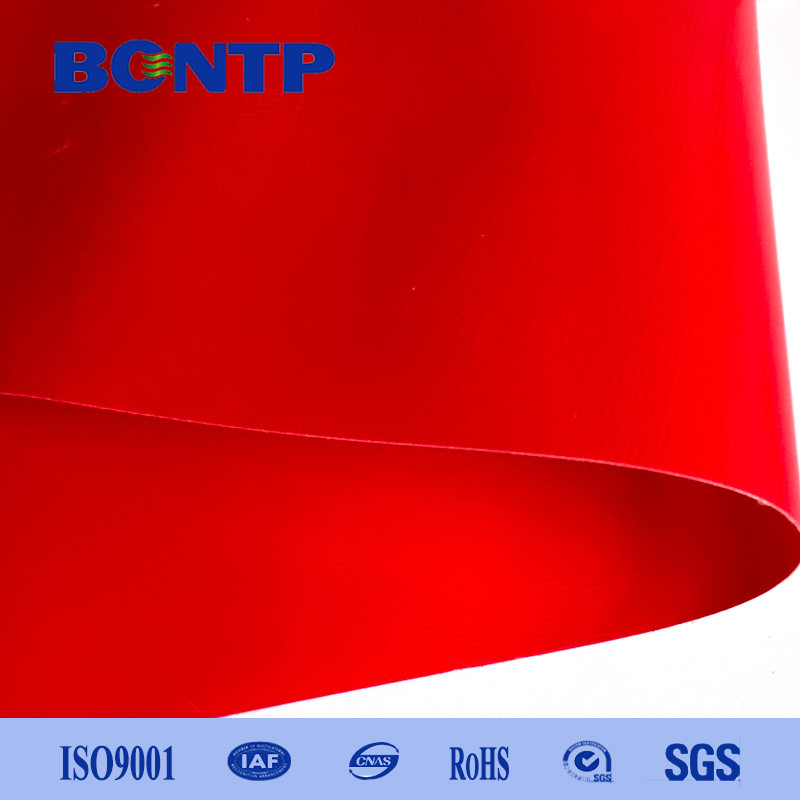

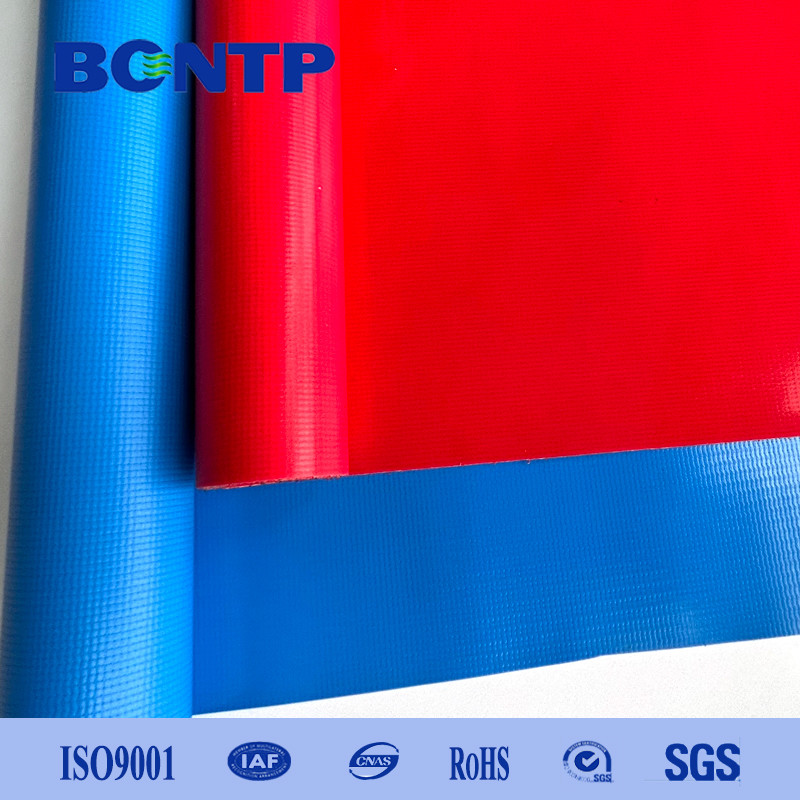

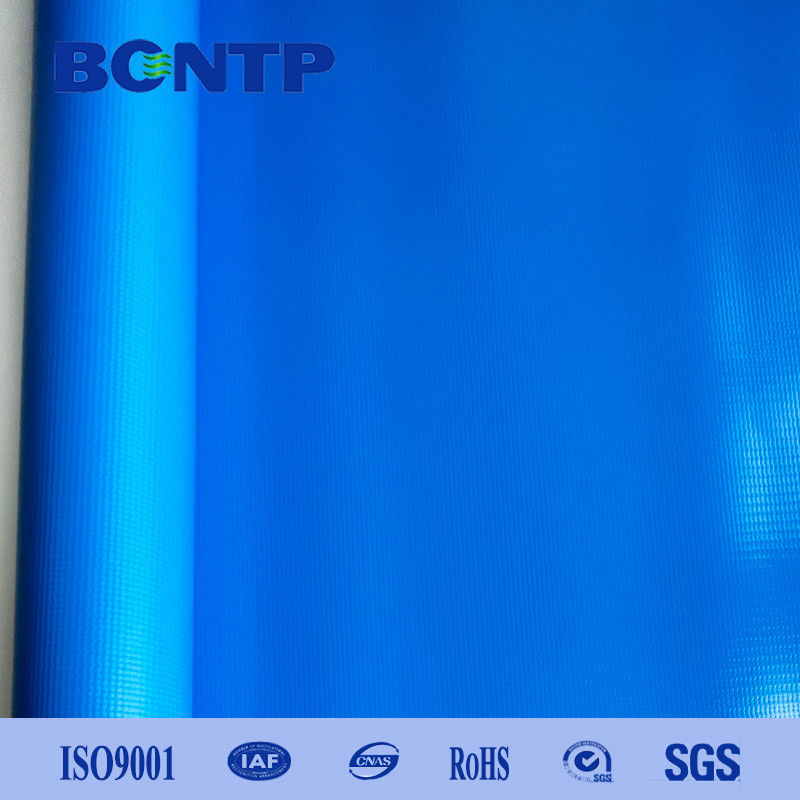

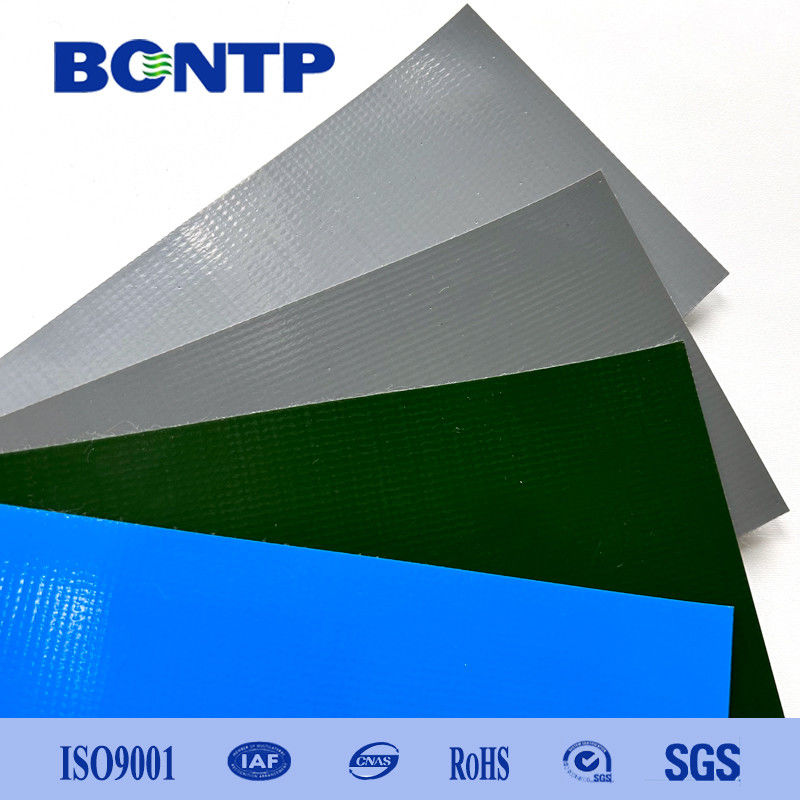

Tear Resistant Waterproof PVC Tarpaulin PVC Coated Fabric For Truck Cover Tent Cover 0Tear Resistant Waterproof PVC Tarpaulin PVC Coated Fabric For Truck Cover Tent Cover 1

Tear Resistant Waterproof PVC Tarpaulin PVC Coated Fabric For Truck Cover Tent Cover 2



Packing&Delivery

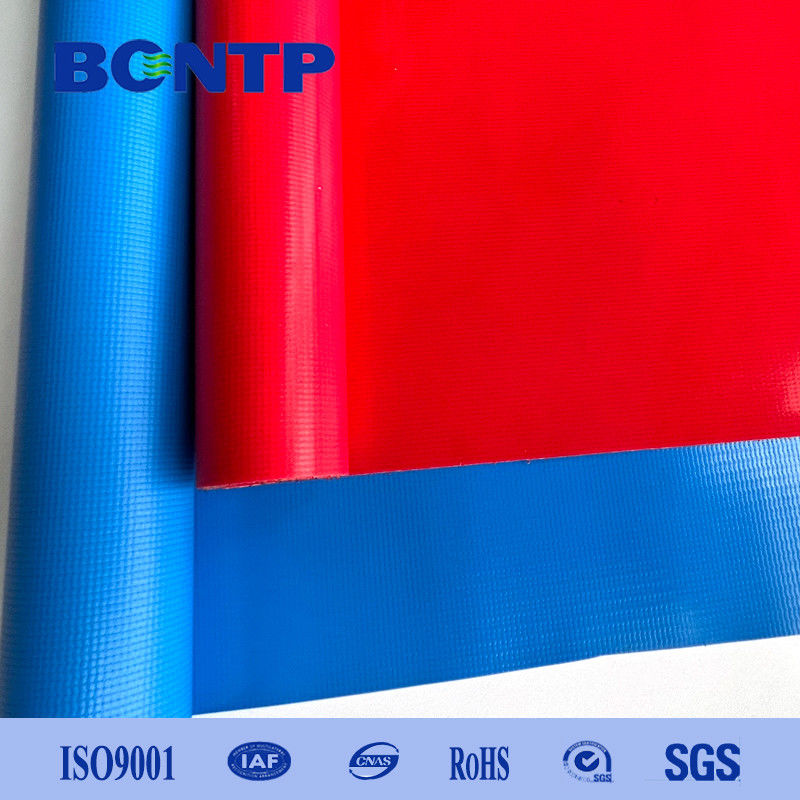

Tear Resistant Waterproof PVC Tarpaulin PVC Coated Fabric For Truck Cover Tent Cover 3Tear Resistant Waterproof PVC Tarpaulin PVC Coated Fabric For Truck Cover Tent Cover 4

inner railway wagon canopykraft paper outside or per your request=PVC tarpaulin railway wagon canopy
