| Place of Origin: | China |
|---|---|
| Brand Name: | BONTP |
| Certification: | ISO9001,IAF ,CNAS,RoHS,SGS |
| Model Number: | 1000D 12*12 |
| Minimum Order Quantity: | 5000 Square Meters |
| Price: | Negotiable |
| Packaging Details: | ROLL PACKING |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000MTS/MONTH |
| Ingredient: | PVC, Polyester Mesh | Base Fabric: | 1 |
|---|---|---|---|
| Place Of Origin: | Zhejiang,China(mainland) | Width: | 0.9-5.1M |
| Thickness Gram Weight: | Custom Made | Color: | Custom Made |
| High Light: | 12x12 PVC Mesh Fabric,330gsm Vinyl Coated Mesh Fabric,330gsm PVC Mesh Fabric |
||

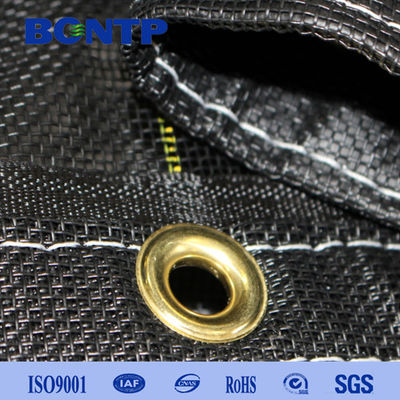

Vinyl Coated Woven Polyester PVC Coated Mesh Fabric,PVC Mesh Fabric
PVC mesh cloth is based on high strength polyester mesh cloth, coated with polyvinyl chloride (PVC) paste resin with growth agent (synthetic plant ester), anti-mildew agent, anti-aging agent, antistatic agent and other chemical additives, mesh cloth by high temperature plasticization. With waterproof, mildew proof, cold resistance, aging resistance, anti-static and other properties; And the breaking strength, tear elongation, tear strength is much better than the traditional tarpaulin. PVC mesh cloth has a wide range of use and high intensity. It is the mainstream product of modern mesh cloth market.
Detail Information
| Brand | BONTP |
| Product Name | PVC Mesh Fabric |
| Model Number | BTL102020 |
| Basic Fabric | 1000D,12*12/sq.in |
| Weight | 260GSM |
| Packing | Craft Paper or Hard Tube Packing |
| Specification | 2.50m width, 50m/roll(standard),other length can customized |
| Application | Awning, Car, Garment, Mattress, Tent |
| Delivery Time | 20 working days after receiving the deposit |
Overview
| Supply Type: | Make-to-Order | Material: | PVC / Polyester |
| Weight: | 330gsm-1500gsm | Thickness: | Medium Weight |
| Feature: | Flame retardant | Technics: | woven |
| Style: | Plain | Type: | Tarpaulin |
| Width: | 0.9-5.1m | Density: | 12*12 |
| Pattern: | Coated | Use: | Truck tarpaulin, architectural membrane,motorboat |
| Yarn Count: | 1000D | Knitted Type: | Warp |
| Coated Type: | Pvc Coated | Model Number: | pvc tarpaulin |
| Color: | Customized | Usage: | Cover Outdoor Items |
| Application: | Tents Awning Roof Covering | Surface: | glossy or matte |
| Packing: | Roll Packing |
Parameters
| Attribute | Unit | Type/Test Method | |||||||
| Color | Custom made | ||||||||
| Basic Fabric | Denier | DIN EN ISO2060 |
500D | 840D | 500*840D | 1000D | 1300D | 2000 | 3000D |
| Weight | mm | DIN EN ISO2286-2 | Client's Requirement |
||||||
| Width | M | DIN EN ISO2286-1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 |
| Tensile Strength | N/5CM | DIN53354 | 600 | 1800 | 1600 | 1250-2500 | 1500-2200 | 2000-3000 | 4000-5000 |
| Tear Strength | DIN53363 | 80 | 200 | 180 | 260 | 450 | 550 | 700 | |
| Flame Retardancy | B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
||
| Color fastness | DINENISO 105-B02 |
7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | |
| Temperature Resistance | ℃ | DINEN 1876-2 |
(-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) |
Features
1. The net surface is flat and smooth, the flat wire is parallel to the gap, neat and even, and the warp and weft are clear and lively.
2. Good finish, with a sense of quality bright, deep black bright, rather than a floating table bright feeling.
3. Moderate flexibility, elasticity, no stiffness, no roughness, and a flat space with thick texture.
4. Regular fixed size packaging, shading rate, specifications, dimensions clearly marked.
5. No peculiar smell, bad smell, some just plastic light burnt paste taste.
Advantages
1. High strength
2. Waterproof, UV-proof, oil
3. Abrasive resistant
4. Bright color and others
5. Durable
6. Comfortable
Product Description
Packing&Delivery
inner railway wagon canopykraft paper outside or per your request=PVC tarpaulin railway wagon canopy
