| Place of Origin: | China |
|---|---|
| Brand Name: | BONTP |
| Certification: | IOS9001,IAF,CNAS,RoHS,SGS |
| Model Number: | 1000D 20*20 |
| Minimum Order Quantity: | 5000 Square Meters |
| Price: | Negotiable |
| Packaging Details: | ROLL PACKING |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000MTS/MONTH |
| Ingredient: | PVC, Polyester Mesh | Color: | Custom Made |
|---|---|---|---|
| Thickness Gram Weight: | Custom Made | Width: | 1.5-5m |
| Usage: | Waterproof/cover/tent | Character: | Flame Retardant (self-extinguishing From Fire), Good Color Fastness, Tear Resistance, Tensile Strength |
| High Light: | Reinforced PVC Coated Fabric,5m flame retardant tarpaulin,1000D 20*20 PVC Coated Fabric |
||
Description

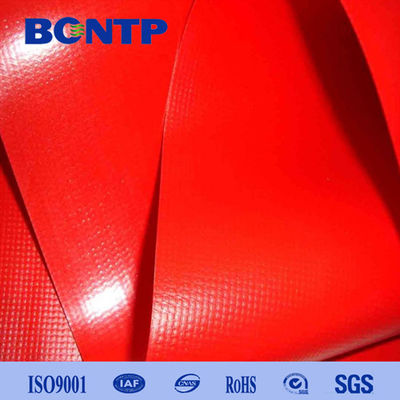

PVC coated tarpaulin is the most frequently used material for flexible fabric structures. It is made up of a polyester scrim material, a bonding or adhesive agent, and exterior PVC coatings. The scrim supports the coating (which is initially applied in liquid form) and provides the tensile strength, elongation, tear strength, and dimensional stability of the resulting fabric.
The base fabric's tensile strength is determined by the size (denier) and strength (tenacity) of the yarns and the number of yarns per linear inch or meter. The larger the yarn and the more yarns per inch, the greater the finished product's tensile strength.
The adhesive agent acts as a chemical bond between the polyester fibers and the exterior coating and also prevents fibers from wicking, or absorbing water in a process that could result in freeze-thaw damage in the fabric.
Detail Information
| Brand | BONTP |
| Product Name | PVC Coated Tarpaulin |
| Model Number | BTL102020 |
| Basic Fabric | 1000*1000D,20*20/sq.in |
| Weight | 260GSM |
| Packing | Craft Paper or Hard Tube Packing |
| Specification | 2.50m width, 50m/roll(standard),other length can customized |
| Application | Awning, Car, Garment, Mattress, Tent |
| Delivery Time | 20 working days after receiving the deposit |
Overview
| Supply Type: | Make-to-Order | Material: | PVC / Polyester |
| Weight: | 330gsm-1500gsm | Thickness: | Medium Weight |
| Feature: | Flame retardant | Technics: | woven |
| Style: | Plain | Type: | Tarpaulin |
| Width: | 0.9-5.1m | Density: | 18*18 |
| Pattern: | Coated | Use: | Truck tarpaulin, architectural membrane,motorboat |
| Yarn Count: | 840D*840D | Knitted Type: | Warp |
| Coated Type: | Pvc Coated | Model Number: | pvc tarpaulin |
| Color: | Customized | Usage: | Cover Outdoor Items |
| Application: | Tents Awning Roof Covering | Surface: | glossy or matte |
| Packing: | Roll Packing |
Parameters
| Attribute | Unit | Type/Test Method | |||||||
| Color | Custom made | ||||||||
| Basic Fabric | Denier | DIN EN ISO2060 |
500D | 840D | 500*840D | 1000D | 1300D | 2000 | 3000D |
| Weight | mm | DIN EN ISO2286-2 | Client's Requirement |
||||||
| Width | M | DIN EN ISO2286-1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 |
| Tensile Strength | N/5CM | DIN53354 | 600 | 1800 | 1600 | 1250-2500 | 1500-2200 | 2000-3000 | 4000-5000 |
| Tear Strength | DIN53363 | 80 | 200 | 180 | 260 | 450 | 550 | 700 | |
| Flame Retardancy | B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
||
| Color fastness | DINENISO 105-B02 |
7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | |
| Temperature Resistance | ℃ | DINEN 1876-2 |
(-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) |
Features
1. Good tensile strength, Tear strength and Peel strength.
2. Fireproof, Anti-UV, Mildew-proof, Oil-resistant,
3. Good Hot and Cold Resistance, Long Time Durability.
4. Width, Length, Color and Weight can be made as customized.
Product Description
Packing&Delivery
inner railway wagon canopykraft paper outside or per your request=PVC tarpaulin railway wagon canopy
