| Place of Origin: | China |
|---|---|
| Brand Name: | BONTP |
| Certification: | IOS9001,IAF,CNAS,RoHS,SGS |
| Model Number: | 500D 12*18 |
| Minimum Order Quantity: | 5000 Square Meters |
| Price: | Negotiable |
| Packaging Details: | ROLL PACKING |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000MTS/MONTH |
| Ingredient: | PVC, Polyester Mesh | Material's Density: | 9*9,12*18 |
|---|---|---|---|
| Color: | Custom Made | Thickness Gram Weight: | Custom Made |

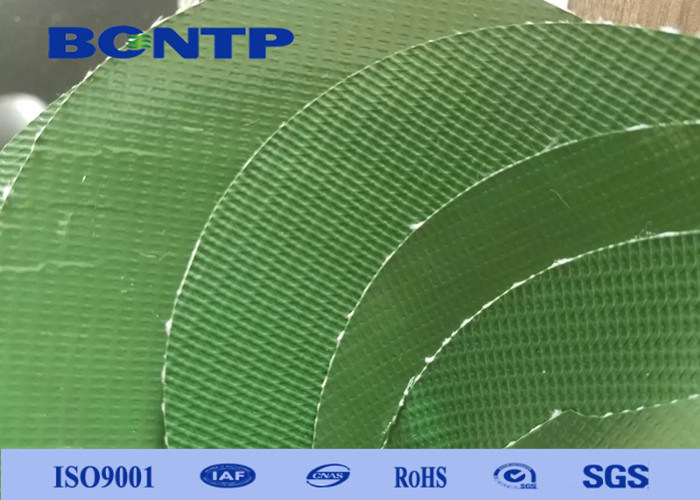

| Name: | PVC Laminated Tarpaulin | Type: | Other Fabric |
| Character: | Flame Retardant (self-extinguishing From Fire), Good Color Fastness, Tear Resistance, Tensile Strength | Width: | 1.5-5m |
| High Light: | 12x18 PVC Laminated Tarpaulin,1.5m pvc tarpaulin sheet,1.5m PVC Laminated Tarpaulin |
||
Description
PVC tarpaulin is a polyester filament base fabric and double-sided coated PVC paste resin. Because it is a dip-molding process, it is formed in one time. There is PVC slurry in the gap of the cloth, so the waterproof performance is good. The production process: polyester filament cloth - Dip coating - drying and shaping - calendering and cooling - winding, now the tarpaulin on the truck, the yard and other rainproof products are made of PVC tarpaulin. PVC material has good rain resistance and good PVC durability. Its waterproof effect is the most obvious among all waterproof canvases.
Detail Information
| Brand | BONTP |
| Product Name | 1000D PVC Coated Mesh Fabirc |
| Model Number | BTL102020 |
| Basic Fabric | 500*500D,12*18/sq.in |
| Weight | 260GSM |
| Packing | Craft Paper or Hard Tube Packing |
| Specification | 2.50m width, 50m/roll(standard),other length can customized |
| Application | Awning, Car, Garment, Mattress, Tent |
| Delivery Time | 20 working days after receiving the deposit |
Overview
| Supply Type: | Make-to-Order | Material: | PVC / Polyester |
| Weight: | 330gsm-1500gsm | Thickness: | Medium Weight |
| Feature: | Flame retardant | Technics: | woven |
| Style: | Plain | Type: | Tarpaulin |
| Width: | 0.9-5.1m | Density: | 12*18 |
| Pattern: | Coated | Use: | Truck tarpaulin, architectural membrane,motorboat |
| Yarn Count: | 500D*500D | Knitted Type: | Warp |
| Coated Type: | Pvc Coated | Model Number: | pvc tarpaulin |
| Color: | Customized | Usage: | Cover Outdoor Items |
| Application: | Tents Awning Roof Covering | Surface: | glossy or matte |
| Packing: | Roll Packing |
Parameters
| Attribute | Unit | Type/Test Method | |||||||
| Color | Custom made | ||||||||
| Basic Fabric | Denier | DIN EN ISO2060 |
500D | 840D | 500*840D | 1000D | 1300D | 2000 | 3000D |
| Weight | mm | DIN EN ISO2286-2 | Client's Requirement |
||||||
| Width | M | DIN EN ISO2286-1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 | 0.9-5.1 |
| Tensile Strength | N/5CM | DIN53354 | 600 | 1800 | 1600 | 1250-2500 | 1500-2200 | 2000-3000 | 4000-5000 |
| Tear Strength | DIN53363 | 80 | 200 | 180 | 260 | 450 | 550 | 700 | |
| Flame Retardancy | B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
B1/M1/M2/ NFPA701/CPAZ-84 |
||
| Color fastness | DINENISO 105-B02 |
7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | 7-8 | |
| Temperature Resistance | ℃ | DINEN 1876-2 |
(-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) | (-30℃)-(70℃) |
Features
1. Good elasticity
2. Environmental protection non-toxic
3. wear-resisting
4.Good cold resistance
5.Wear-resistance
Product Description
Packing&Delivery
inner railway wagon canopykraft paper outside or per your request=PVC tarpaulin railway wagon canopy
