PVC Coated Mesh 100% Polyester Fabric PVC Mesh Fabric 130D

Basic Information
Place of Origin: China
Brand Name: BONTP
Certification: ISO9001,IAF ,CNAS,RoHS,SGS
Model Number: 130D 2219
Minimum Order Quantity: 5000 Square Meters
Price: Negotiable
Packaging Details: ROLL PACKING
Delivery Time: 30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000MTS/MONTH
Detail Information
Ingredient: PVC, Polyester Mesh Thickness Gram Weight: Custom Made
Weather: -20℃-70℃ Width: 0.9-5.1M
Base Fabric: 1 Color: Custom Made
Place Of Origin: Zhejiang,China(mainland) Bulk Deliver: 30 Days
High Light:

PVC Mesh Fabric 130D

,

CNAS PVC Coated Mesh

,

Polyester PVC Mesh Fabric


Product Description

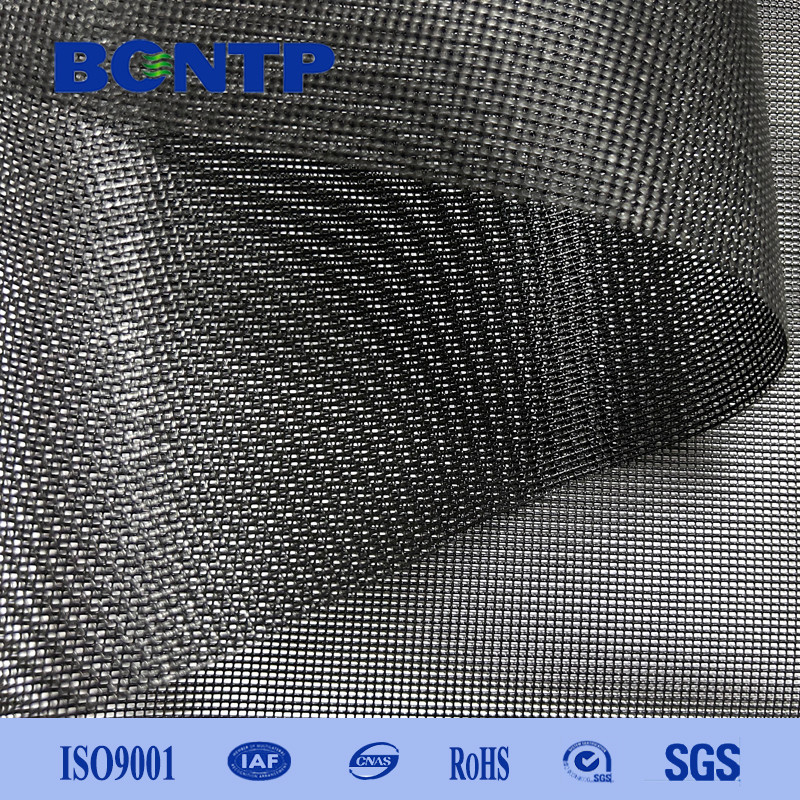

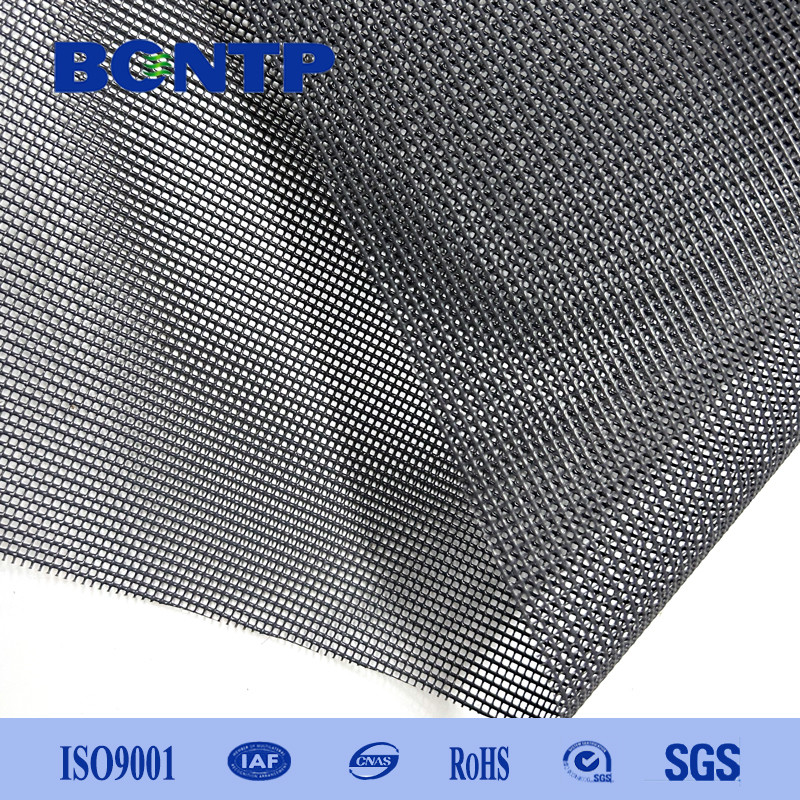

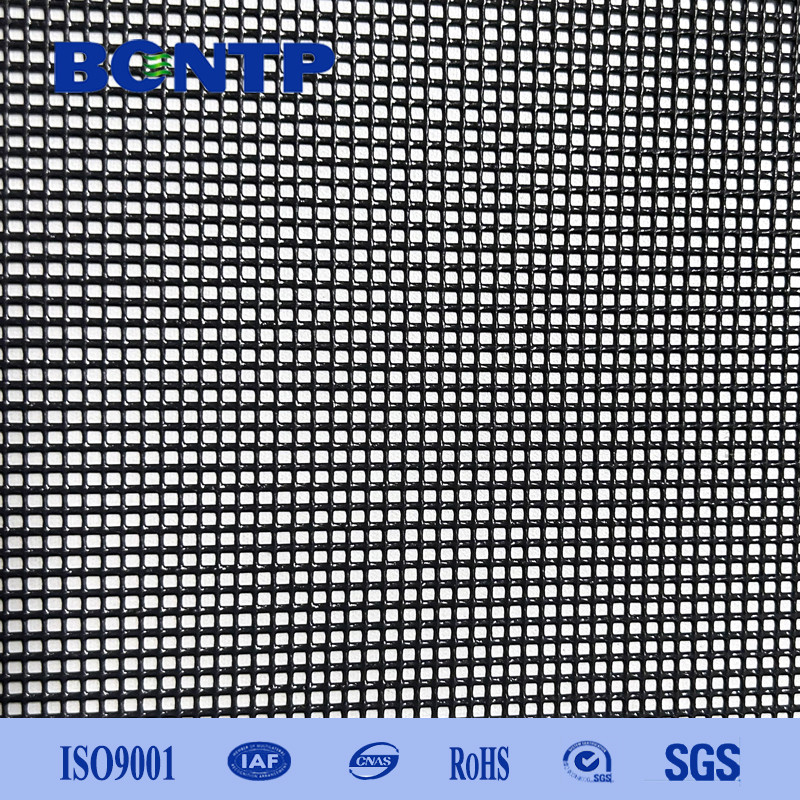

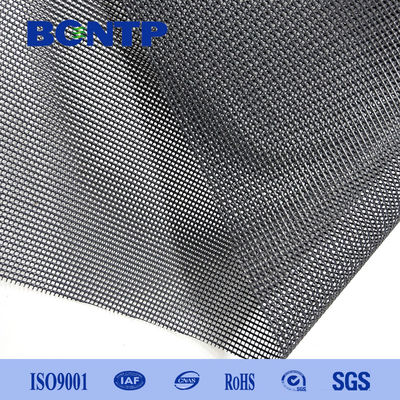

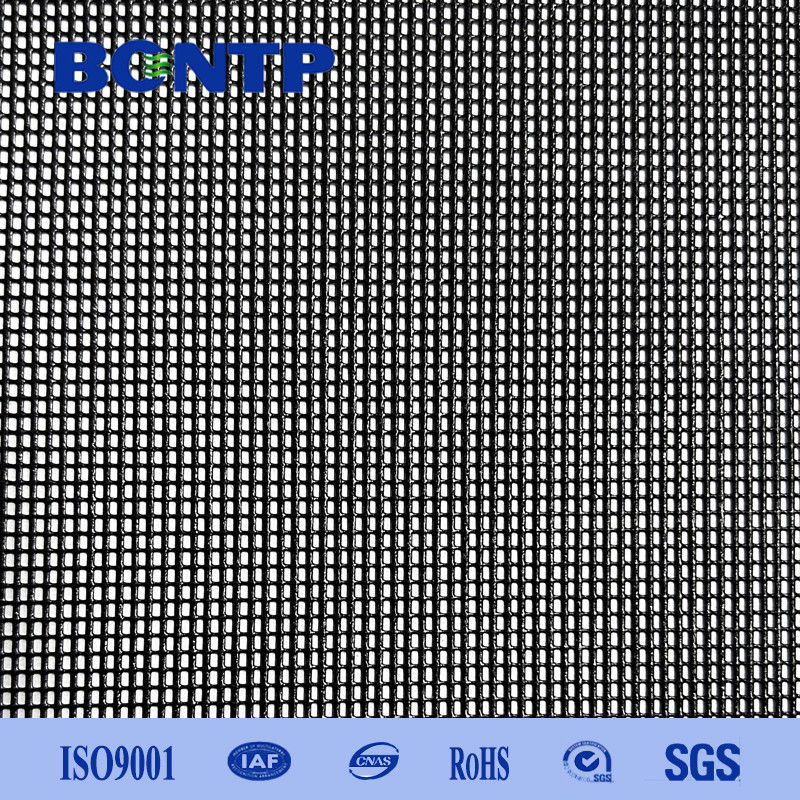

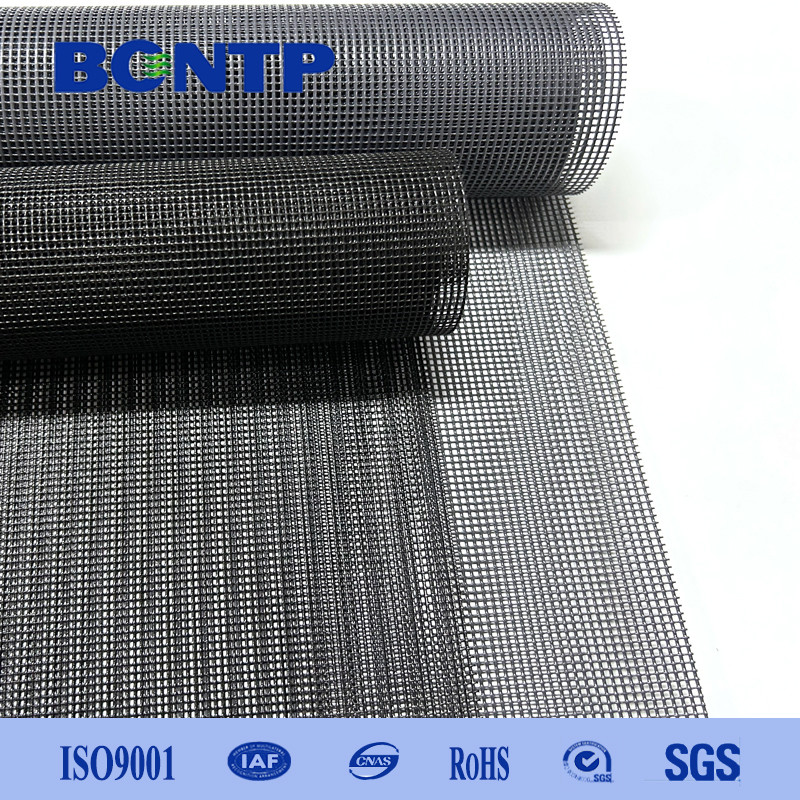

PVC Coated Mesh 100% Polyester Fabric,PVC Mesh Fabric



Description



PVC mesh is based on high strength polyester mesh, coated with polyvinyl chloride (PVC) paste resin, added with accelerator (synthetic plant ester), mildew inhibitor, anti-aging agent, antistatic agent and other chemical additives, the mesh is plasticized at high temperature. It is waterproof, mildew proof, cold resistant, aging resistant and antistatic; And the breaking strength, tear elongation and tear strength are much better than the traditional tarpaulin. PVC mesh has a wide range of uses and high strength, which is the mainstream product in modern mesh Market.



Detail Information



Brand BONTP
Product Name PVC Mesh Fabric
Model Number BTL102020
Basic Fabric 380*380D,15*16/sq.in
Weight 260GSM
Packing Craft Paper or Hard Tube Packing
Specification 2.50m width, 50m/roll(standard),other length can customized
Application Awning, Car, Garment, Mattress, Tent
Delivery Time 20 working days after receiving the deposit



Overview



Supply Type: Make-to-Order Material: PVC / Polyester
Weight: 330gsm-1500gsm Thickness: Medium Weight
Feature: Flame retardant Technics: woven
Style: Plain Type: Tarpaulin
Width: 0.9-5.1m Density: 15*16
Pattern: Coated Use: Truck tarpaulin, architectural membrane,motorboat
Yarn Count: 380D*380D Knitted Type: Warp
Coated Type: Pvc Coated Model Number: pvc tarpaulin
Color: Customized Usage: Cover Outdoor Items
Application: Tents Awning Roof Covering Surface: glossy or matte
Packing: Roll Packing



Parameters



Attribute Unit Type/Test Method
Color     Custom made
Basic Fabric Denier DIN EN
ISO2060
500D 840D 500*840D 1000D 1300D 2000 3000D
Weight mm DIN EN ISO2286-2
Client's Requirement
Width M DIN EN ISO2286-1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1 0.9-5.1
Tensile Strength N/5CM DIN53354 600 1800 1600 1250-2500 1500-2200 2000-3000 4000-5000
Tear Strength   DIN53363 80 200 180 260 450 550 700
Flame Retardancy     B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
B1/M1/M2/
NFPA701/CPAZ-84
Color fastness   DINENISO
105-B02
7-8 7-8 7-8 7-8 7-8 7-8 7-8
Temperature Resistance DINEN
1876-2
(-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃) (-30℃)-(70℃)



Features



1. Open weave flexible sign face
2. Knife coating technology make the Liquid PVC inosculate with the polyester yarn perfectly.
3. Outstanding tearing strength
4. Flame retardant character
5. Anti-oxidant
6. Temperature resistance: -20--70
7. Weather resistant(UV, rain, fungi and frost)



Advantages



1. PVC mesh fabric is Flexible & light weight
2. pvc mesh fabric is High tenacity&durable
3. pvc mesh fabric is Flame retardant

4.pvc mesh fabric bright color,Eco Friendl,

5.Tear Resistant,Oil Resistant ,Water Resistant



Product Description



PVC Coated Mesh 100% Polyester Fabric PVC Mesh Fabric 130D 0



Packing&Delivery



PVC Coated Mesh 100% Polyester Fabric PVC Mesh Fabric 130D 1PVC Coated Mesh 100% Polyester Fabric PVC Mesh Fabric 130D 2

inner railway wagon canopykraft paper outside or per your request=PVC tarpaulin railway wagon canopy
